Product Details
＋

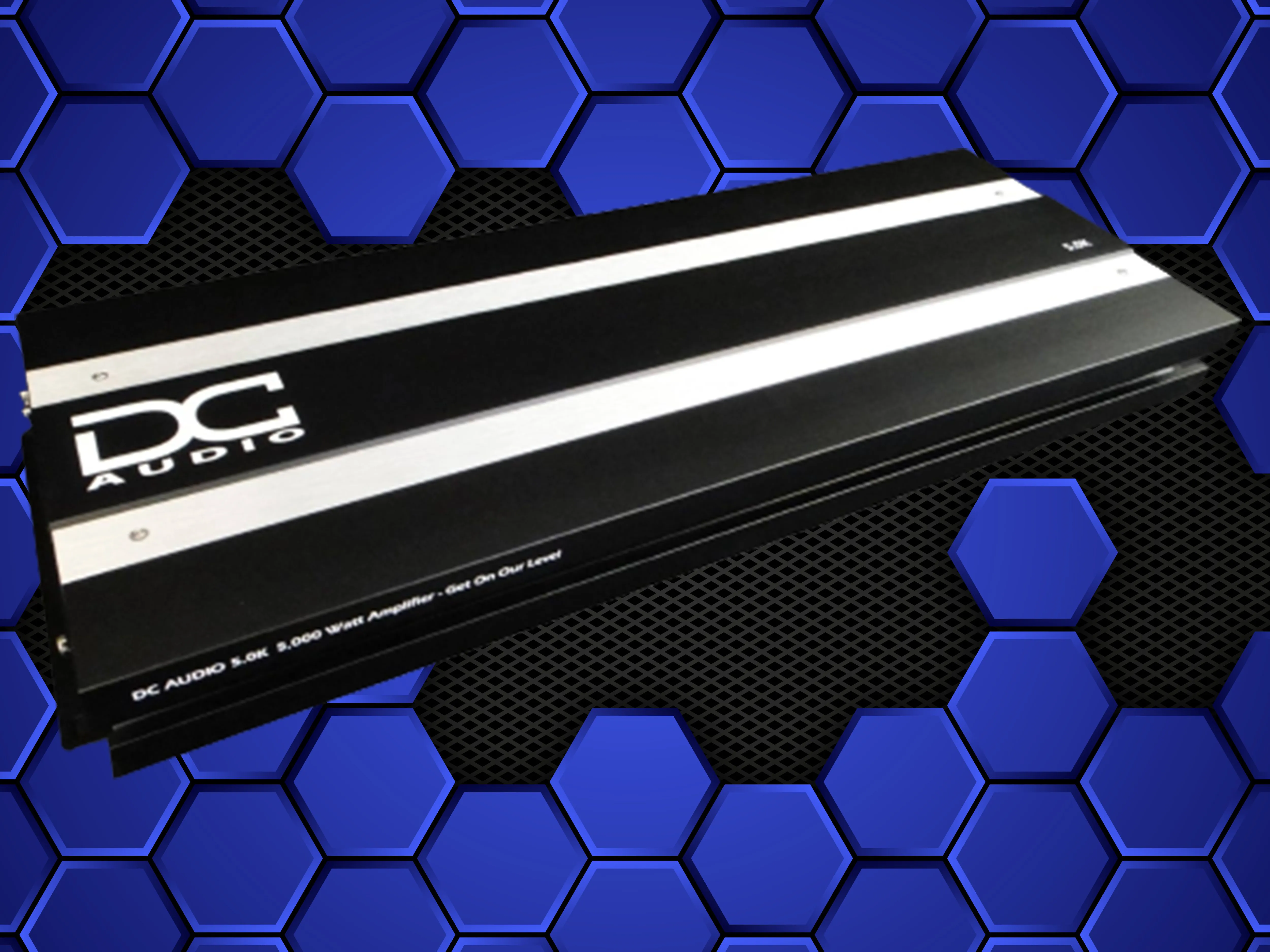

DC Audio 5.0k Amplifier
The 5.0k competition series amplifier is rated as a 5000 watt mono block. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when linked for up to 14,600 watts from a pair. It comes with a bass knob and a clipping indicator.
Output Power (RMS):
- 900x1 @ 4 ohms 14.4 volts
- 2300x1 @ 2 ohms 14.4 volts
- 5000x1 @ 1 ohms 14.4 volts
- 10000x1 @ 2 ohm 14.4 volts LINKED
- 6000x1 @ 1 ohm 16.0 volts
- 12000x1 @ 2 ohm 16.0 volts LINKED
- 7300x1 @ 1 ohm 18.0 volts
- 14600x1 @ 2 ohm 18.0 volts LINKED
Key Features:
- 1 ohm stable
- Variable low pass filter
- Variable subsonic filter
- Variable bass boost
- RCA Pass Thru
- Linkable

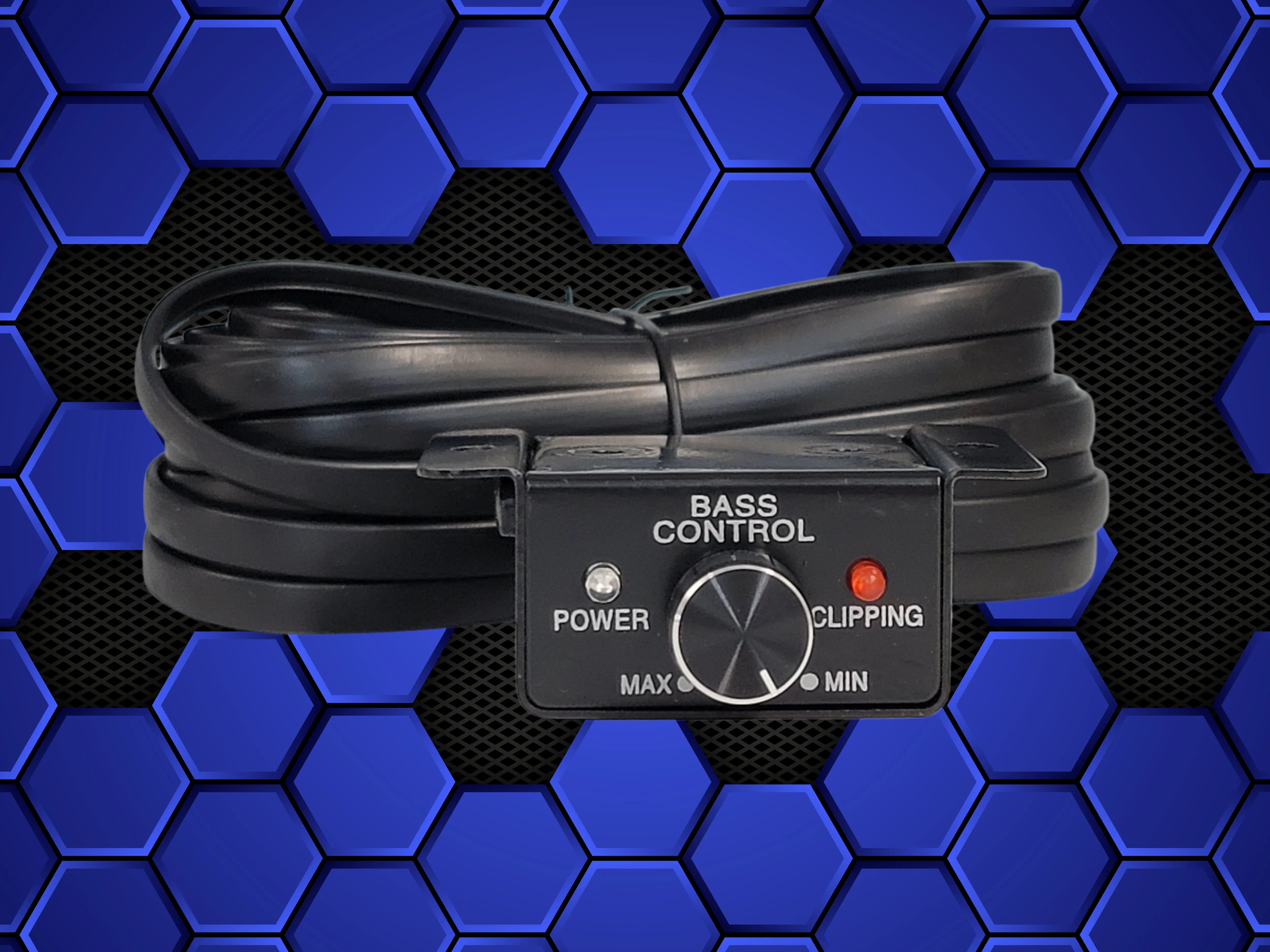

- Wired remote control
- Clipping indicator
- 8awg Speaker Terminals

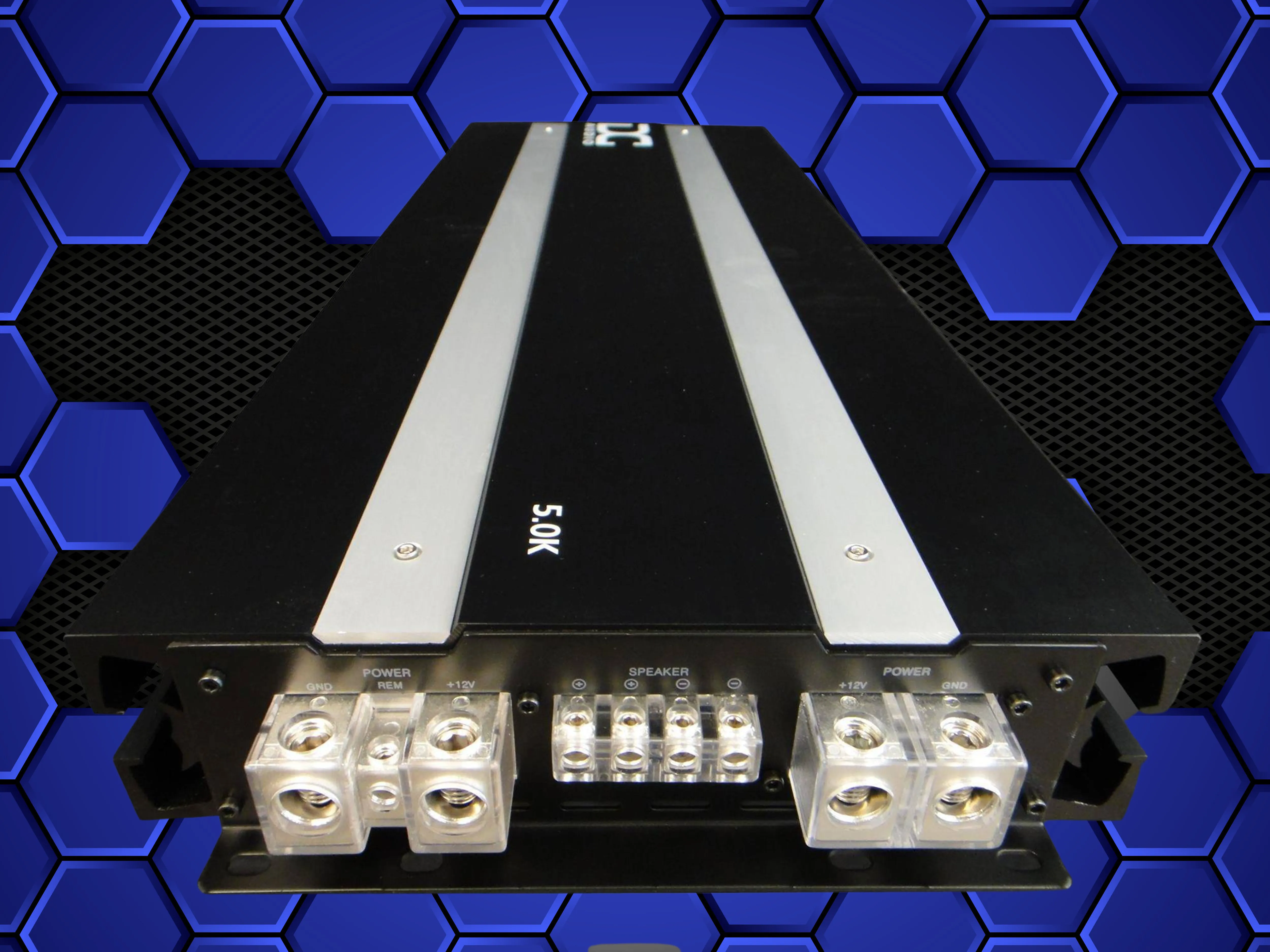

- Dual 1/0awg Power and Ground Inputs
Full Specs:
| DC Amp Model: | 5.0k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 20Hz~250Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 200< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 250 amp x 2 |
| LED Status Lights | Power and Protect |
| Master/Slave | YES |
| Heatsink Length | 25.596"/650mm |
| Heatsink Width | 9.38"/238mm |
| Heatsink Height | 2.35"/59.6mm |
