Product Details
＋
DC Audio 9.0k Amplifier
The 9.0k competition series amplifier is rated as a 9000 watt mono block. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when linked for up to 22,000 watts from a pair. It comes with a bass knob.
Output Power (RMS):
- 2,400x1 @ 4 ohms 14.4 volts
- 4,800x1 @ 2 ohms 14.4 volts
- 9,000x1 @ 1 ohms 14.4 volts
- 18,000x1 @ 2 ohm 14.4 volts LINKED
- 9,800x1 @ 1 ohm 16.0 volts
- 19,600x1 @ 2 ohm 16.0 volts LINKED
- 11,000x1 @ 1 ohm 18.0 volts
- 22,000x1 @ 2 ohm 18.0 volts LINKED
Key Features:
- 1 ohm stable
- Variable low pass filter
- Variable subsonic filter
- Variable bass boost
- RCA Pass Thru
- Linkable

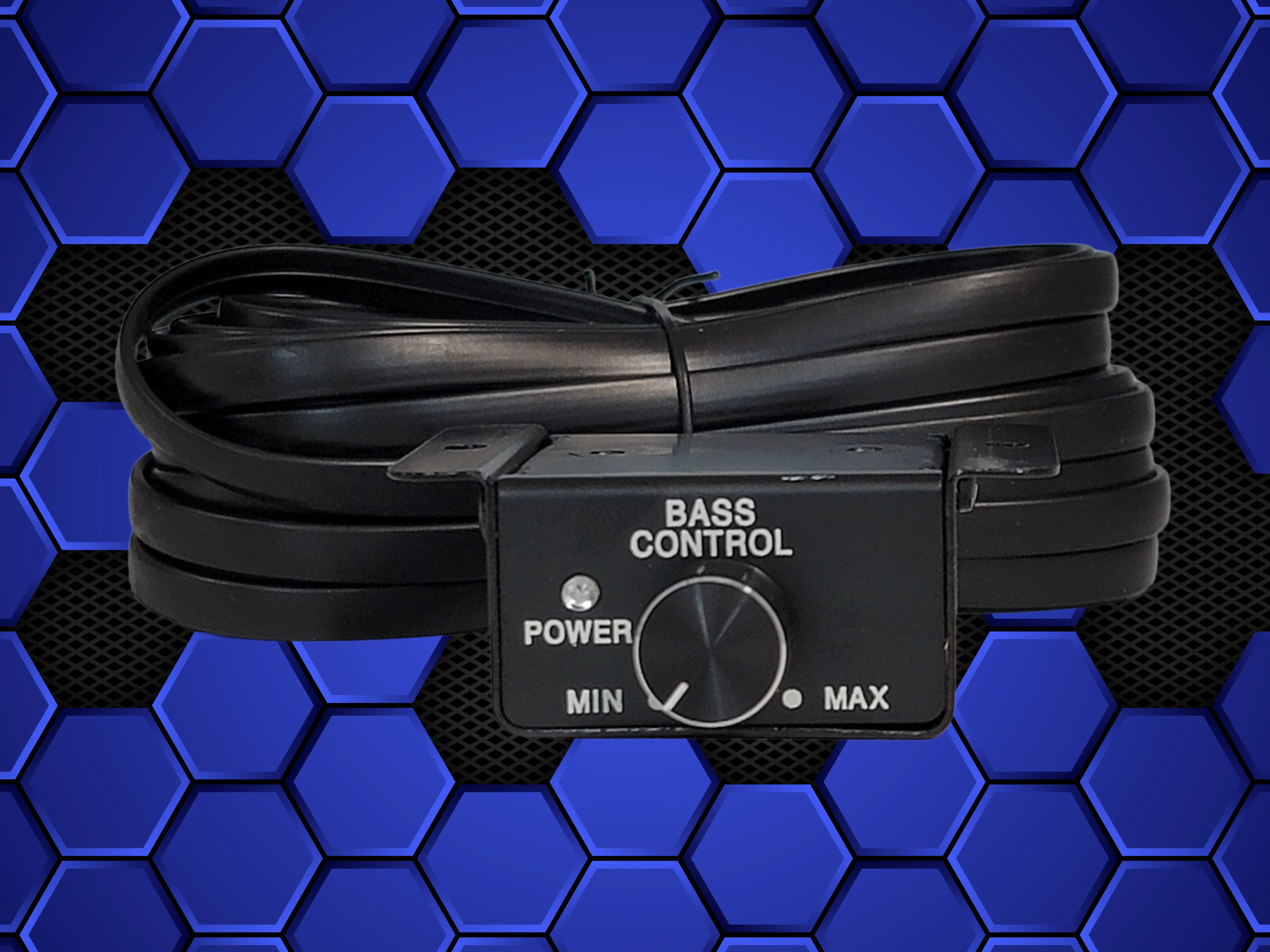

- Wired remote control
- 8awg Speaker Terminals

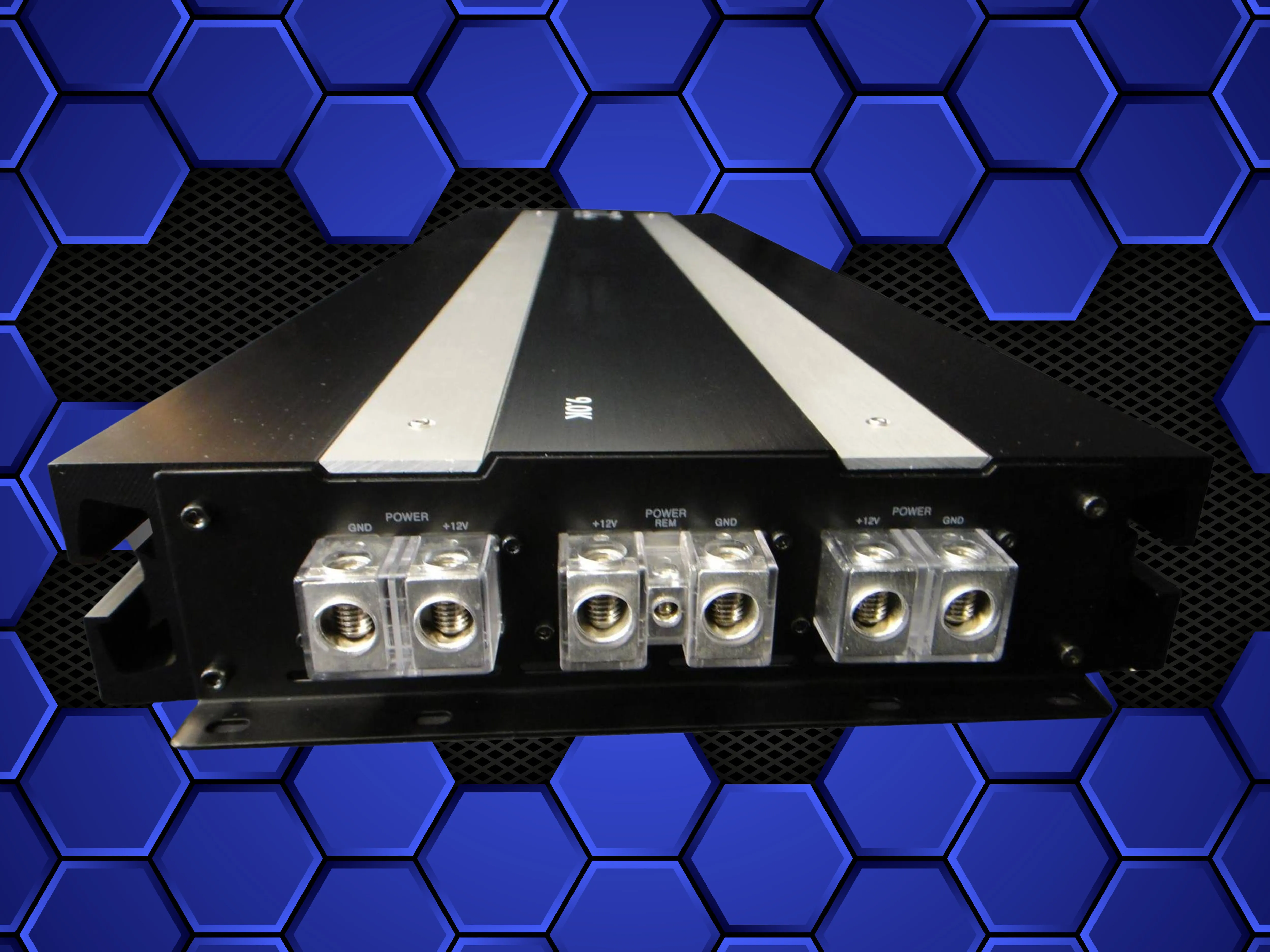

- Triple 1/0awg Power and Ground Inputs
Full Specs:
| DC Amp Model: | 9.0k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 20Hz~250Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | No |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 250< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 300 amp x 3 |
| LED Status Lights | Power and Protect |
| Master/Slave | YES |
| Heatsink Length | 34.64"/880mm |
| Heatsink Width | 11.5"/292mm |
| Heatsink Height | 2.6"/66mm |
