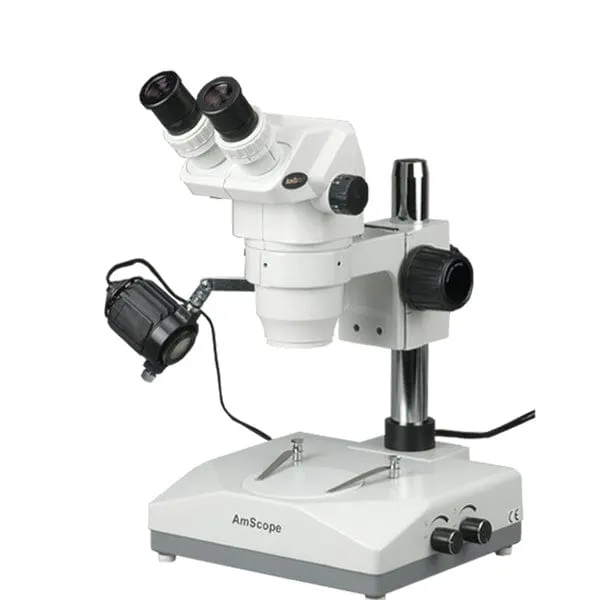

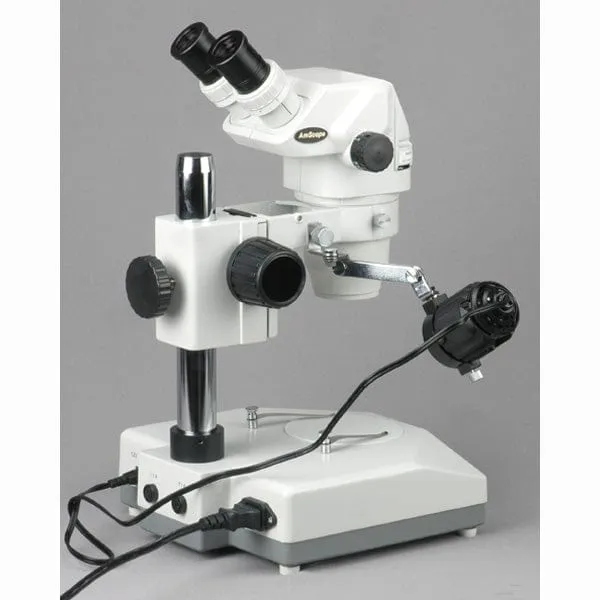

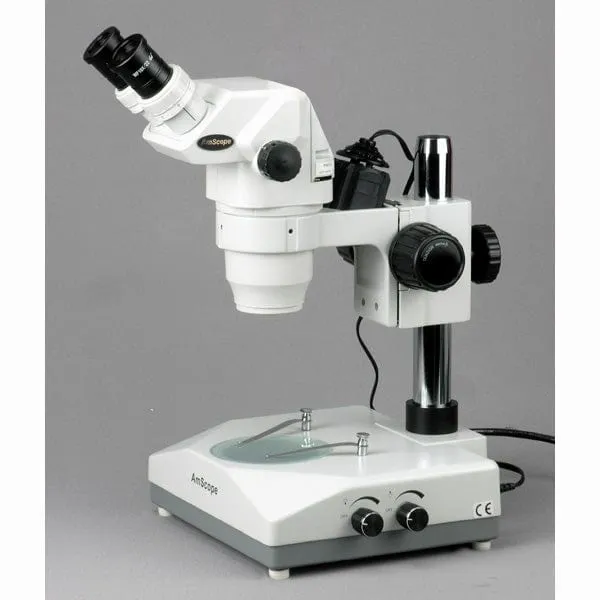

This binocular extreme widefield stereo microscope is a fully coated optical system with super high resolution, giving sharp and crystal clear images. With extreme widefield high-eyepoint 10x eyepieces, it offers 3.5X-45X continuous zoom magnification with extremely good flatness and contrast. It provides large zoom range and long working distance. This microscope comes with both Epi-illuminator and transmitted illumination systems. It is an ideal instrument for biological research, semiconductor and other industries that require precision-oriented observation.

Features :

• Super High Resolution with Extremely Great Flatness and Contrast, Giving Sharp and Clear Images
• Binocular Head with Super Widefield and High-eyepoint Eyepieces
• Both Ocular-Tubes with Adjustable Diopter
• Large Zoom Magnification Range 3.5X-45X
• Large 8" (200mm) Working Distance
• Accurate Alignment Ensuring a Fatigue-Free Long Hour Viewing
• Full Metal Stand Construction

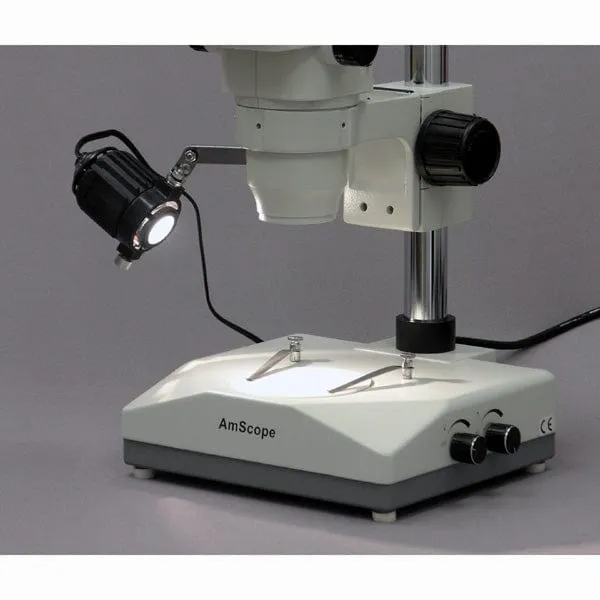

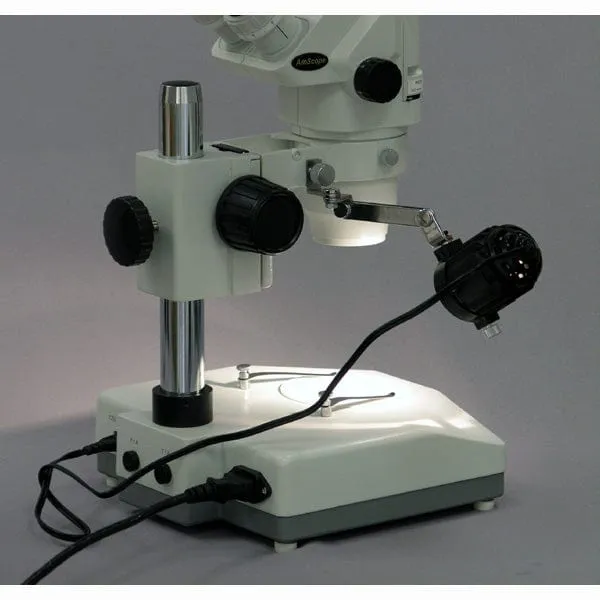

• Epi-Illuminator and Built-in Transmitted Illumination System with Adjustable Brightness
• Extra Separate Epi-illuminator Stand with Transformer
• GS & CE Approval Electric Apparatus
• Manufactured under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Manufacturer Warranty

Specifications :

• Head: 45 degree inclined 360 degree swiveling binocular
• Eyepiece: 30mm super widefield high-eyepoint WF10X/22
• Objective Zoom Range: 0.67-4.5X
• Barlow Lens: 0.5X
• Working Distance: up to 8" (200mm)
• Field of View (Maximum): 2-1/2" (68mm)
• Diopter Adjustment: /- 5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Stage Plate: 4" (100mm in diameter) frosted glass object plate and 4" (100mm) white/black plastic plate
• EPI-Illumination: 12V/15W halogen bulb with dome
• Transmitted Illumination: 12V/15W halogen bulb
• Power Supply: 110VAC 60Hz
• Accessories: one pair of eye-cguards, one pair of object clips, one dust cover, and two spare halogen bulbs

Packing List :

• One Extreme Widefield Binocular Stereo Zoom Microscope Head
• One Pillar Stand with Bottom Light
• One Focusing Rack
• One Halogen Top Light with Mounting Fixture
• One Pair of Extreme Widefield WH10X/22 Eyepieces
• One Extreme Widefield 0.5X Barlow Lens
• One Pair of Foldable Eye-Guards
• One Round Frosted Glass Working Plate
• One White/Black Round Plastic Working Plate
• One Pair of Clips
• One Power Cord
• One Dust Cover
• Two Halogen Spare Bulbs
• User's Manual Download
• Shipping Weight: 25 lbs
