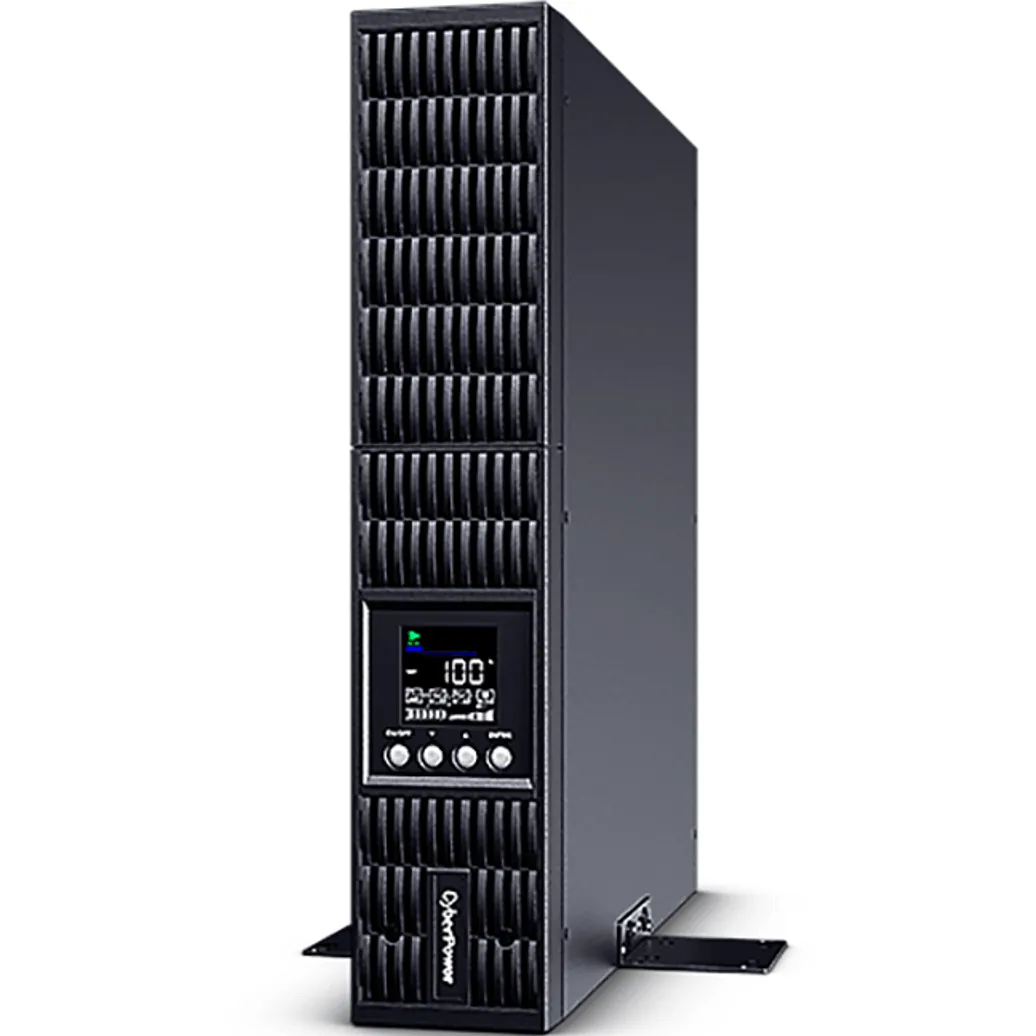

CyberPower OLS1000ERT2UA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.

The UPS features color LCD panel for users to monitor power system and configure settings easily, and relay-type dry contact to perform local management. This model is designed with extended battery module auto-detection, which can automatically detect the quantity of connected Extended Battery Modules (EBM) to estimate UPS's runtime. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.

• Online (Double Conversion) UPS Topology
• Generator Compatible
• Zero Transfer Time
• Extended Battery Module Auto-detection
• Critical/Non-critical Load Outlets
• Phone/Fax/Modem/DSL/Network Protection
• Variable Speed Fans
• PowerPanel® Management Software
• Rack/Tower Convertible Configurations
• ECO Mode
• Overload Protection
• Smart Battery Management (SBM)
• Surge and Spike Protection
• EMI and RFI Filtration
• Color LCD Panel
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)

Phase: Single Phase

Form Factor: Rackmount, Tower

UPS Topology: Online Double Conversion

Energy Saving Technology: Online ECO Mode Efficiency > 95%

Generator Compatibility: Yes

Nominal Input Voltage ( Vac ): 230 ± 10%

Input Voltage Range ( Vac ): 160 - 300

Adjustable Voltage Range ( Vac ): 0-30% Load for 80 - 300 Vac | 0-60% Load for 120 - 300 Vac | 0-80% Load for 140 - 300 Vac | 0-100% Load for 160 - 300 Vac

Input Frequency ( Hz ): 50 ± 10 | 60 ± 10

Input Frequency Detection: Auto-sensing

Rated Input Current ( A ): 4.5

Input Power Factor: 0.99

Input Connector Type: IEC C14

Power Cord Length (m.): 1.5

Output Capacity (Watts): 900

On Battery Waveform: Pure Sine Wave

On Battery Voltage(s) ( Vac ): 208 ± 1% | 220 ± 1% | 230 ± 1% | 240 ± 1%

Output Voltage Setting: Configurable

On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%

Output Frequency Setting: Configurable

Power Factor: 0.9

ECO Mode Voltage Tolerance: ± 15 %

Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse

Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately

Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately

Overload Protection (Bypass Mode): >130% Load Immediately

Crest Factor: 3 : 1

Harmonic Distortion (Linear Load): THD?3%

Harmonic Distortion (Non-linear Load): THD?5%

Internal Bypass: Automatic Bypass, Manual Bypass

Outlet(s) - Total: 8

Outlet Type: IEC C13 x 8

Outlet(s) - Battery & Surge Protected: 8

Outlet(s) - Critical Load (CL): 4

Outlet(s) - Non-Critical Load (NCL): 4

Typical Transfer Time ( ms ): 0

Runtime at Half Load ( min ): 11

Runtime at Full Load ( min ): 4

Typical Recharge Time ( Hours ): 4

Maximum Charging Current ( A ): 1.5

Start On Battery: Yes

Smart Battery Management (SBM): Yes

User-replaceable: Yes - Qualified Personnel Only

Battery Type: Sealed Lead-acid

Battery Cartridge: RBP0156

RBP Quantity ( pcs ): 1

Battery Quantity (Each RBP) ( pcs ): 2

Battery Voltage (Each RBP) ( V ): 24

Compatible Extended Battery Module (EBM): BPSE24V40ART2U

Extended Battery Module Auto-detection: Yes

Max. EBM Quantity ( pcs ): 3

Surge Suppression ( Joules ): 363

EMI/RFI Filtration: Yes

Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out

LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting

HID Compliant USB Port(s): 1

Dry Contact (with Relay): Yes

Emergency Power Off (EPO) Port: Yes

Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cable ( pcs ): Power Cord x2, USB Cable x1

Power Management Software: PowerPanel Business (Recommended)

SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205

Enclosure Construction: Metal

Rackmount Rail: Yes

Rackmount Ears: Yes

Dimensions: 438 x 88 x 430mm

Weight: 13.5kg

Certifications: CE, RCM
