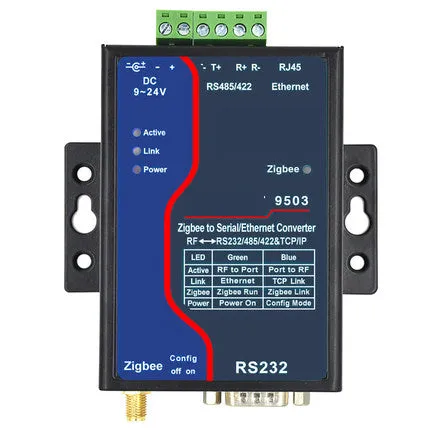

Name: [Discontinued] Zigbee wireless serial port server, ZLAN9503
SKU: 1865872

Product Details ＋

APPLICATION

Building /Entrance /Door /Security Control System
Power /Electronic /Intelligent Instrument
Bank /Medical Automation System
Industrial Automation System
Point-of-sale System (POS)
Information Household Appliances

FEATURE

1) Long distance Zigbee communication solution, high performance, high stability. The communication distance can be up to 2km.
2) Big data transmission no packet loss. Duplex transmission under 38400bps the data doesn’t loss packet and no pause, data smoothness.
3) ZLAN9503 has multi-function of Zigbee to Ethernet, realize Zigbee to TCP/IP, can be configured as TCP server, TCP client, UDP mode and so on. Equipped with Windows virtual serial port and device managing tool ZLVircom, can support virtual serial port.
4) The networking mode of Zigbee is flexible, can have many types: realizing point-to-point, point-to-multipoint; having center node, no center node; star network, mesh network, peer-to-peer network.
5) Network capacity is larger, 16 channel optional, 65535 network ID can be freely set.
6) 6 kinds of LED lights separately indicate data flow direction, TCP/IP network status, Zigbee signal and connection state, intuitively response equipment status.
