Product Details
＋
he HMC5983 -TR is a 3-axis temperature compensated Integrated Circuit Magnetometer with automatic offset compensation. This surface-mount, multi-chip module is designed for low-field magnetic sensing for applications such as automotive and personal navigation, vehicle detection and pointing. The HMC5983 includes state-of-the-art, high-resolution HMC118X series magneto resistive sensors plus an ASIC. The ASIC provides amplification and set/reset strap drivers to ensure maximum sensitivity and offset cancellation, temperature compensation and a 12-bit ADC that enables 1 to 2° compass heading accuracy. The I²C or SPI serial bus allows for easy interface.
Technical Details
- Temperature-compensated data output and temperature output
- 12-bit ADC coupled with low noise AMR sensors achieve 2 milli-gauss field resolution
- I²C (standard, fast, high-speed modes) or SPI digital interface
- Built-in self-test
- Low voltage operations and low power consumption (100μA)
- High-speed interfaces for fast data communications
- I²C up to 3.4MHz and SPI up to 10.0MHz
- Built-in strap drive circuits
- Wide magnetic field range (±8.1 Oe)
- Software and algorithm support
- Automatically maintains sensor's sensitivity under wide operating temperature range
- Maximizes sensor's full dynamic range and resolution
- Enables low-cost functionality test after assembly in production
Physical Attributes
- L x W x H (mm): 17 x 14 x 1
- Weight (gm) : 1
Package Includes

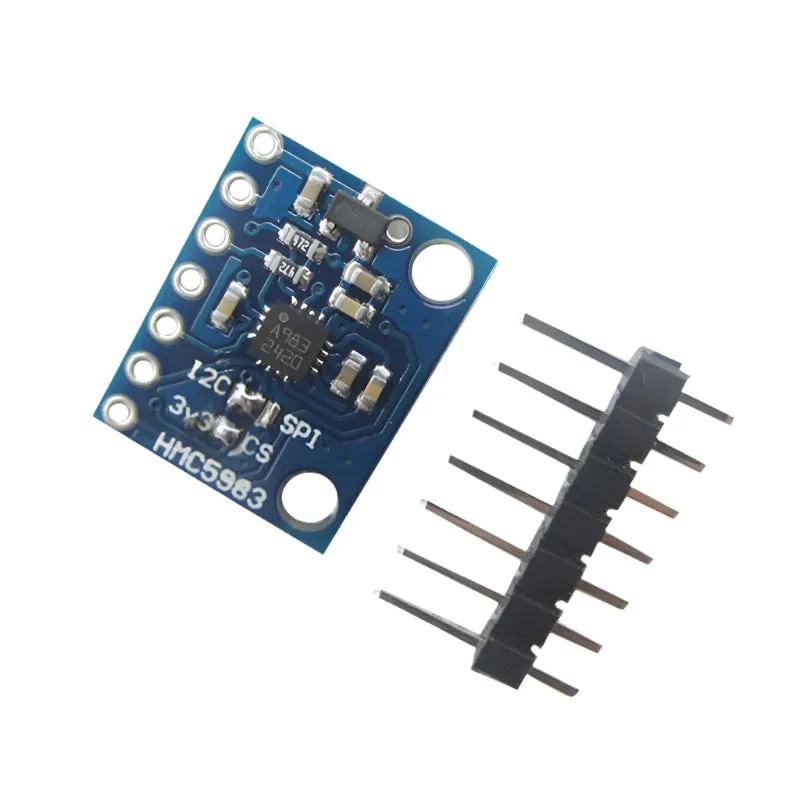

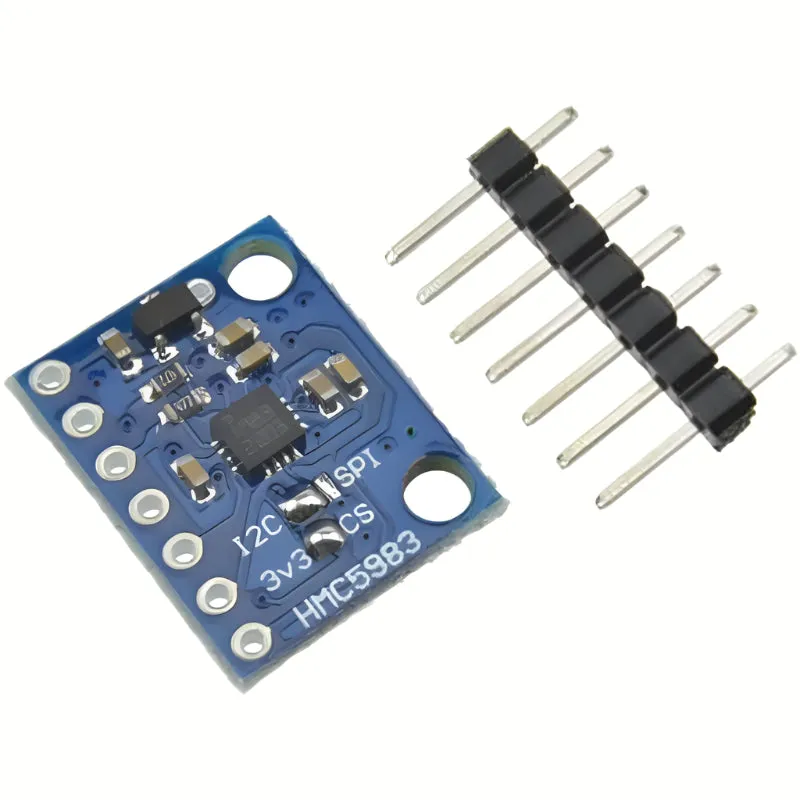

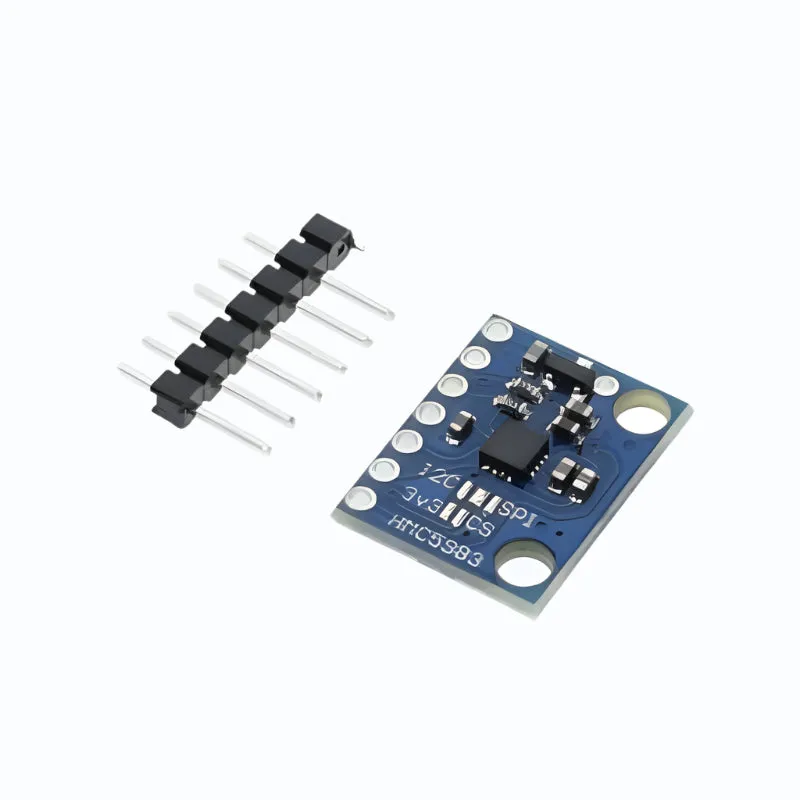

- 1 x GY-282 HMC5983 Replace HMC5883L Temperature Compensation Triaxial Compass IIC SPI Module
