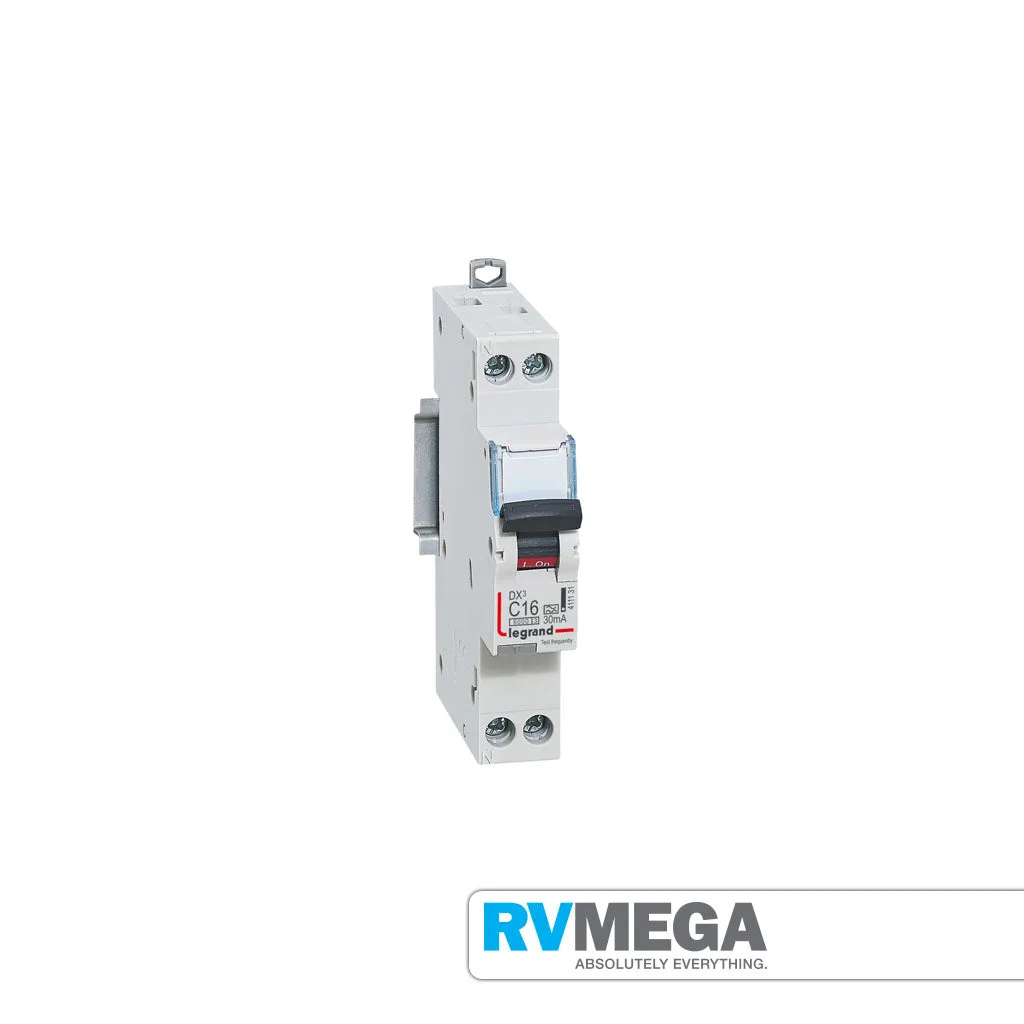

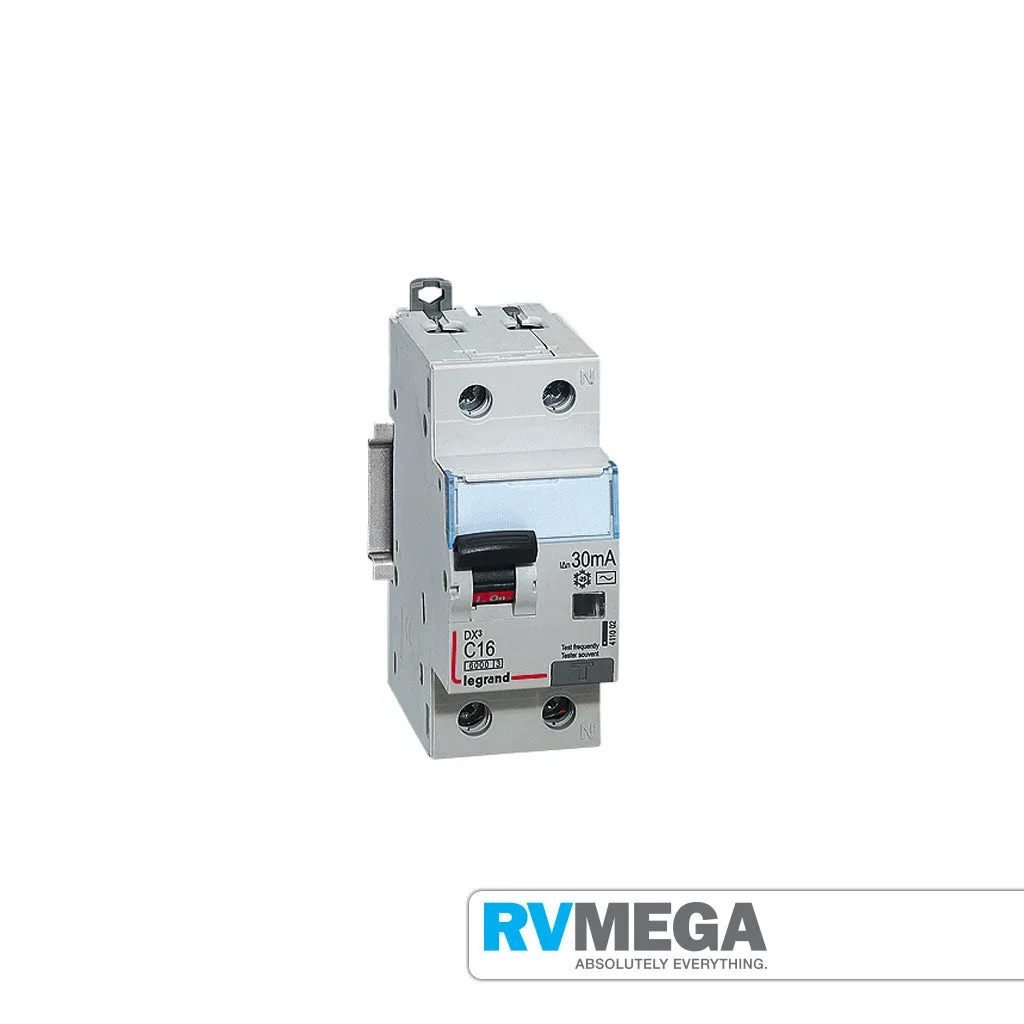

Residual Current Circuit Breaker with Overload (RCBO) with positive contact indication for control, protection against short-circuits and overloads, and isolation of electrical circuits, protecting people from direct and indirect contact and protecting installations from insulation faults.

Features

• Conform to IEC 61009-1, IEC 62423 (F type).
• Compatible with prong-type and fork type supply busbars.
• Voltage independent tripping.
• Breaking capacity: 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole neutral, 2 and 4-pole.
• AC type : detect AC component faults.
• A type : detect AC and DC component faults.
• F type (High immunity) : detect AC and pulsating DC residual currents.
• Enhanced immunity to unwanted tripping in disturbed environments.
• Detection of high frequency fault currents.
• Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls.
• Number of modules : 2.

Specifications

• Single pole neutral 230 V~
• Neutral on right-hand side.
• A Type 30 mA.
• C curve.
• Nominal rating In 16 A.
