Overview

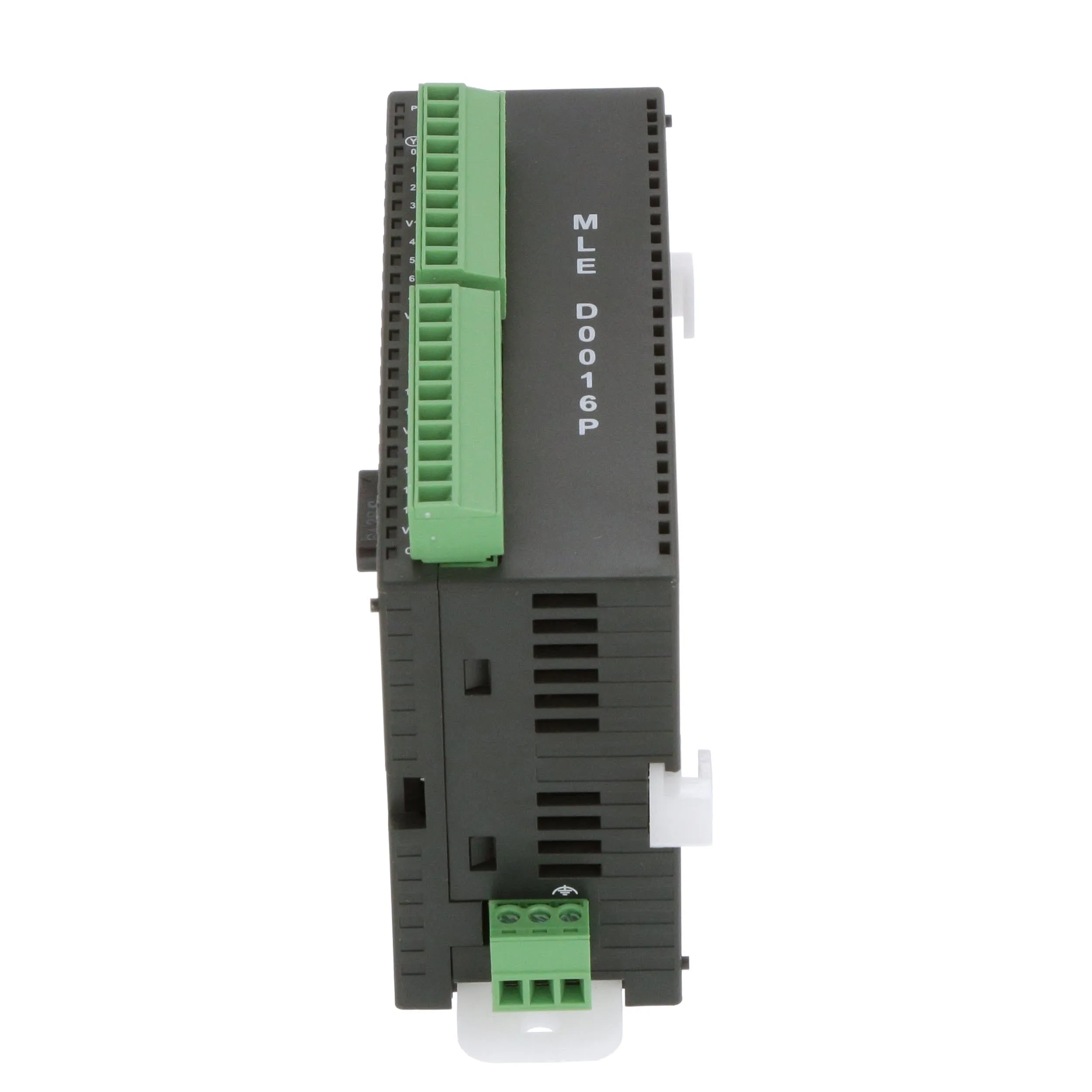

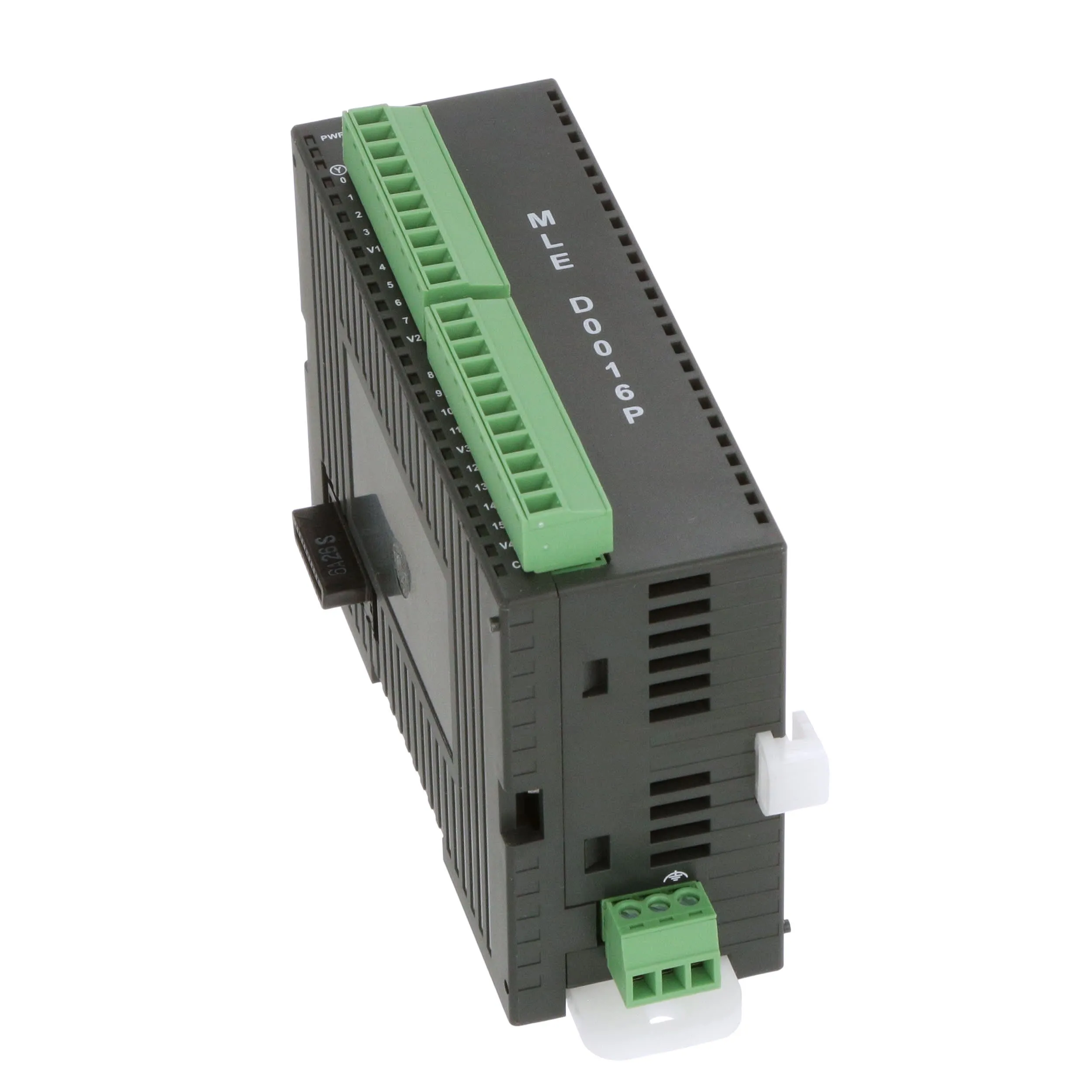

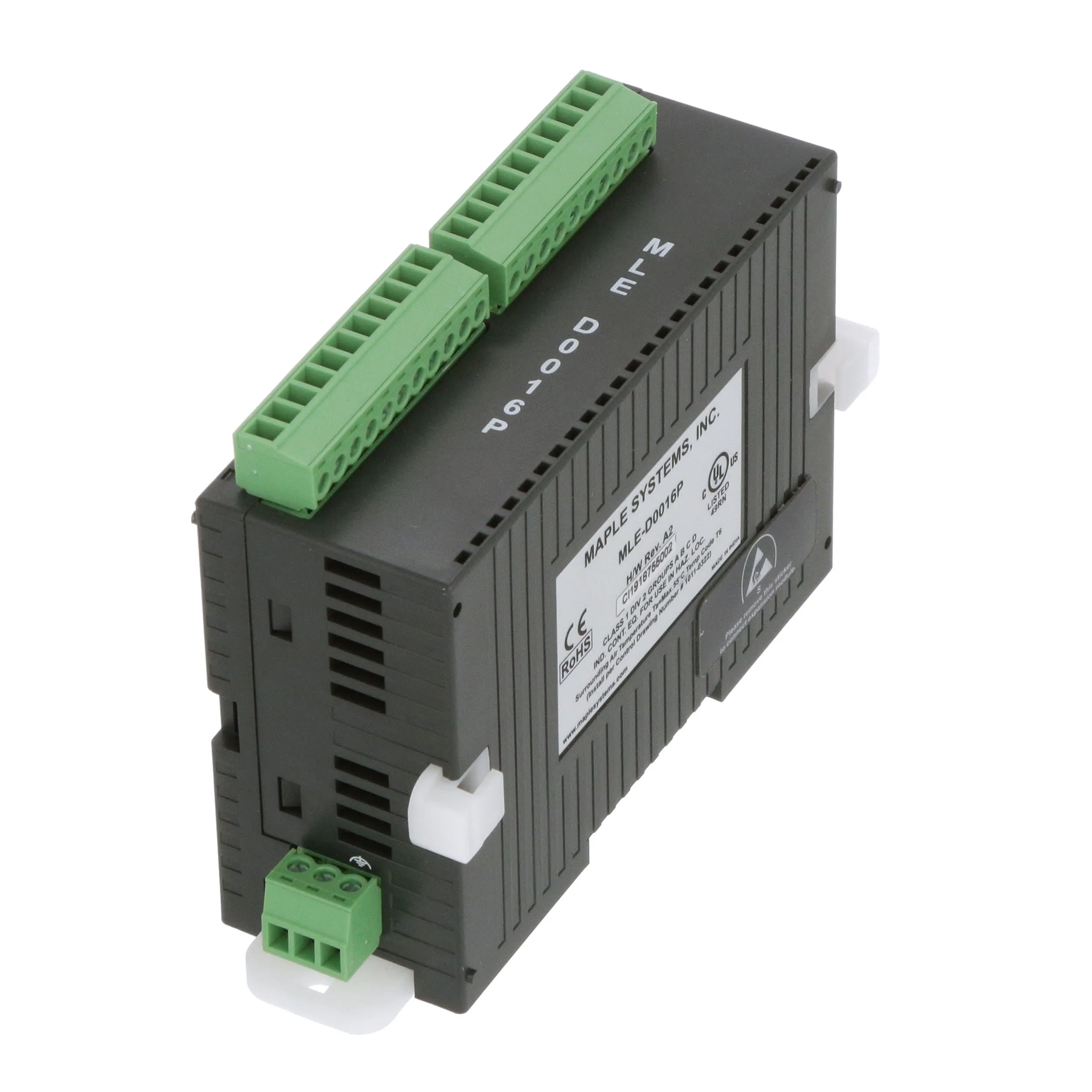

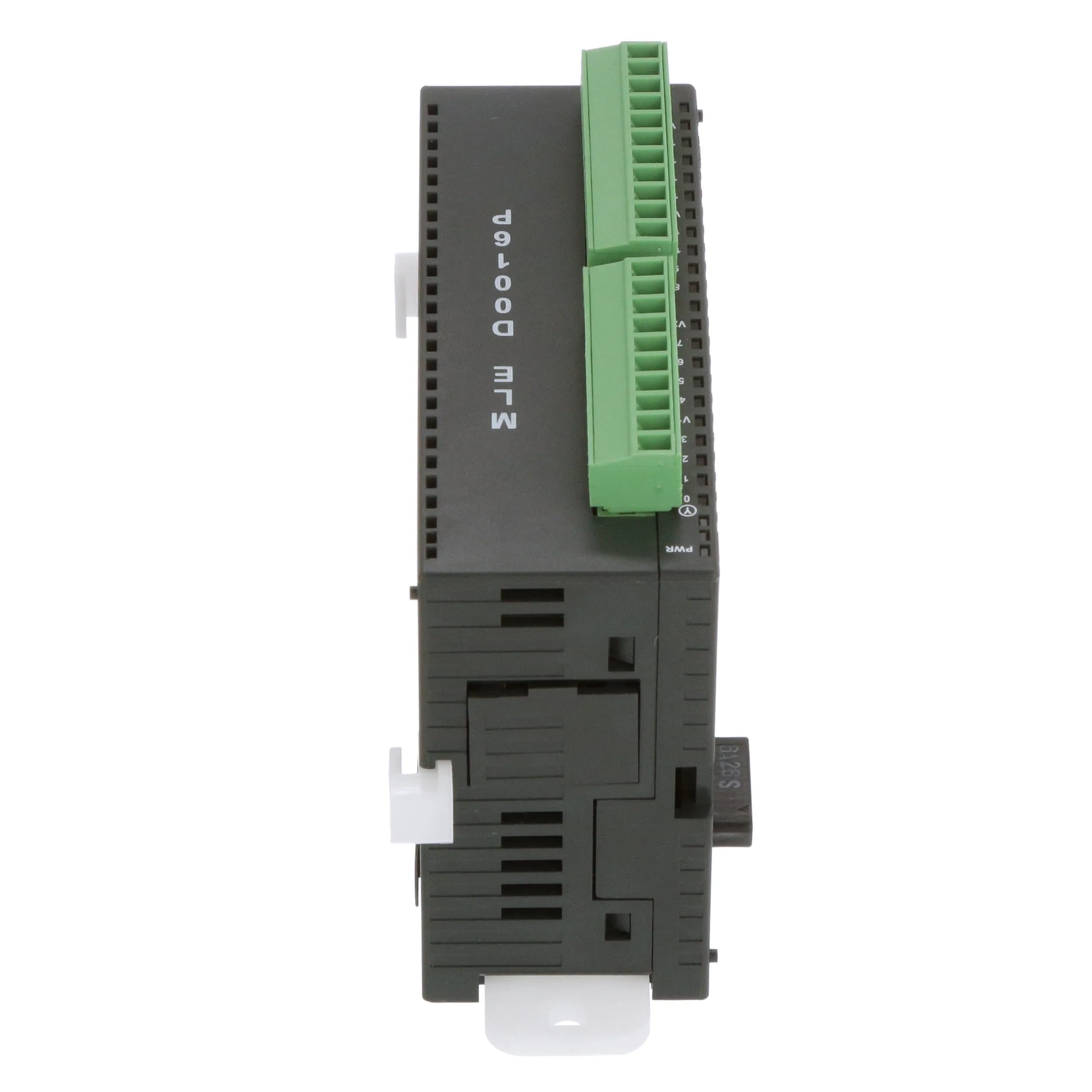

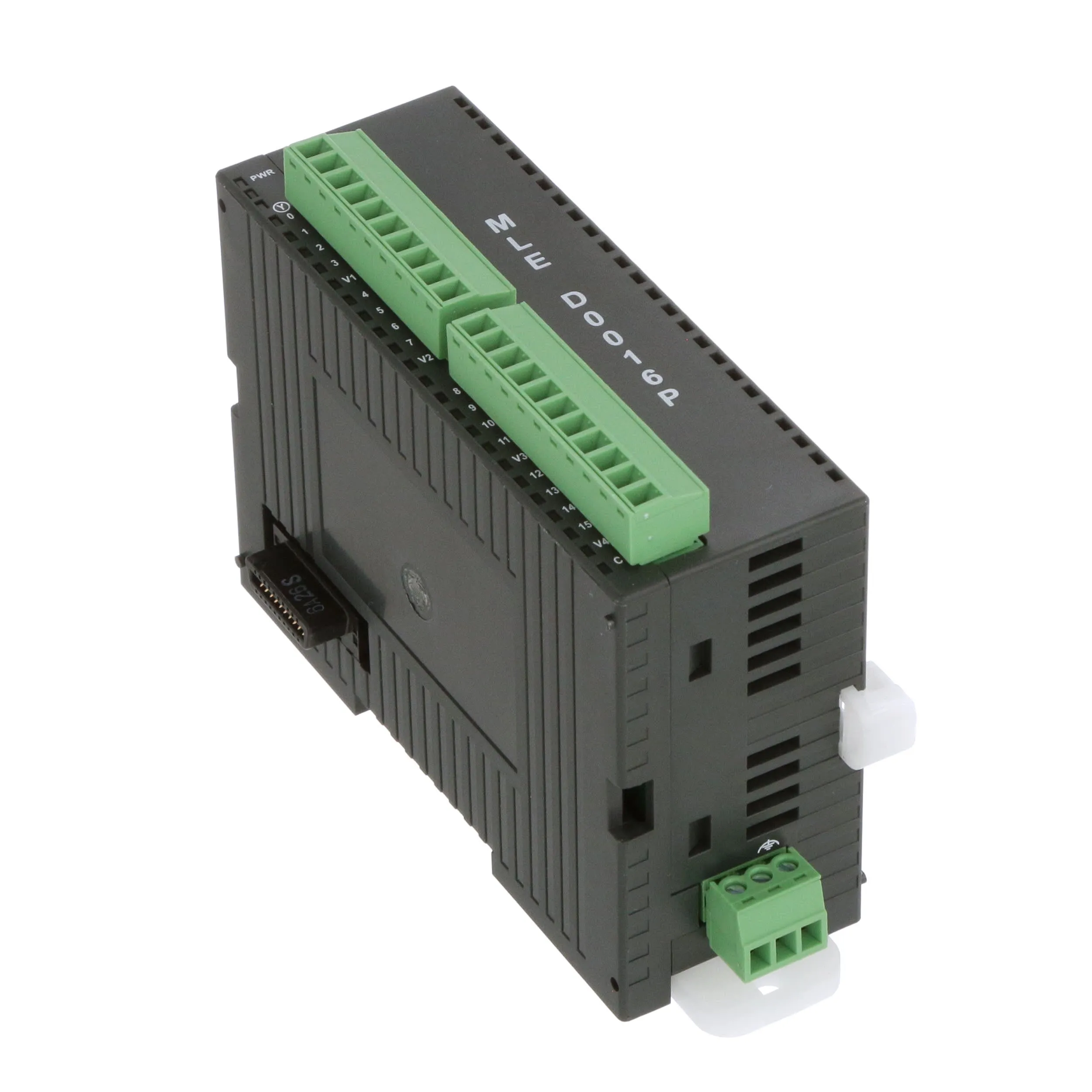

Compatible with all EX-Series PLCs, Maple Systems offers twelve MLE I/O expansion modules (nine digital and three analog). Customize your PLC to maximize functionality while minimizing unnecessary costs. Up to 16 expansion modules can be connected to an EX-Series PLC for a maximum of 256 additional I/O points.
Digital Modules
EX-Series digital I/O modules support as many as sixteen inputs or outputs per module, or a combination of eight inputs/outputs. These modules support:
Bidirectional (sink or source) inputs
PNP (source), NPN (sink), or relay outputs
High-speed counter input option (up to 25kHz)
Pulse Width Modulation output option (up to 10kHz)
