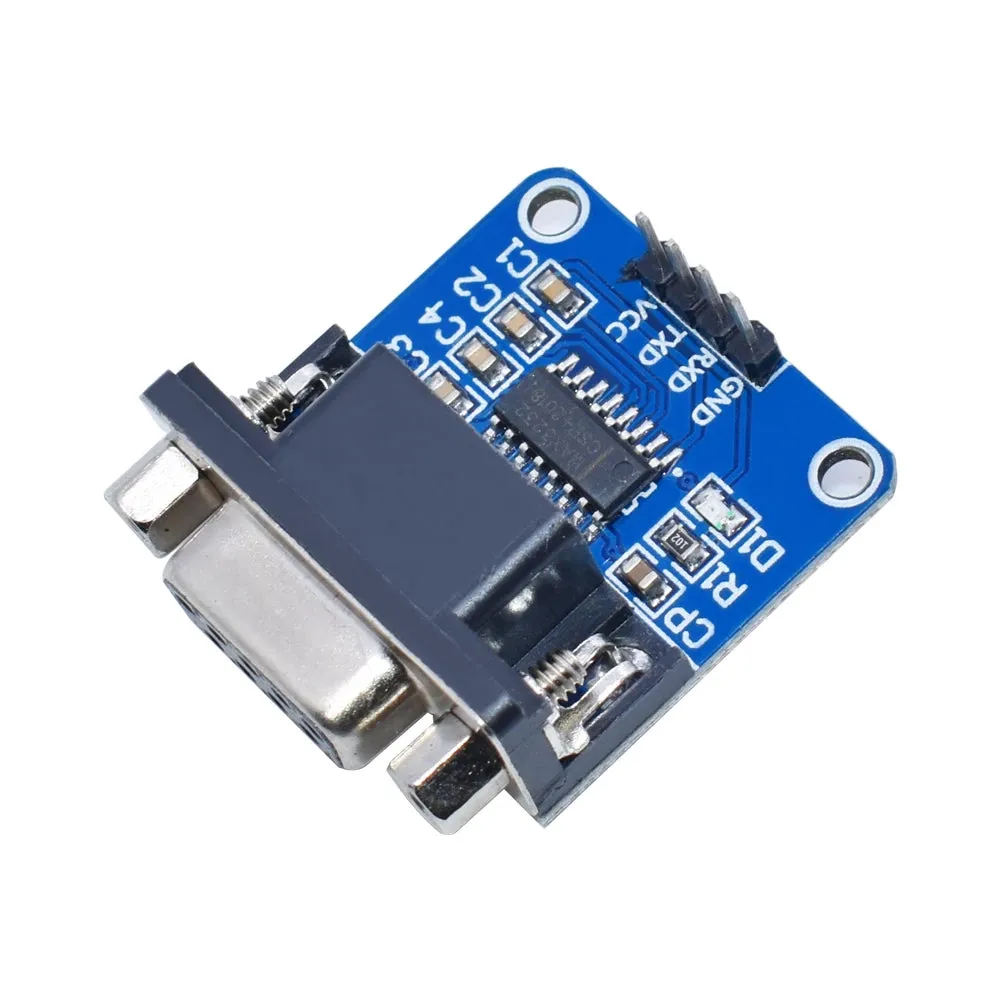

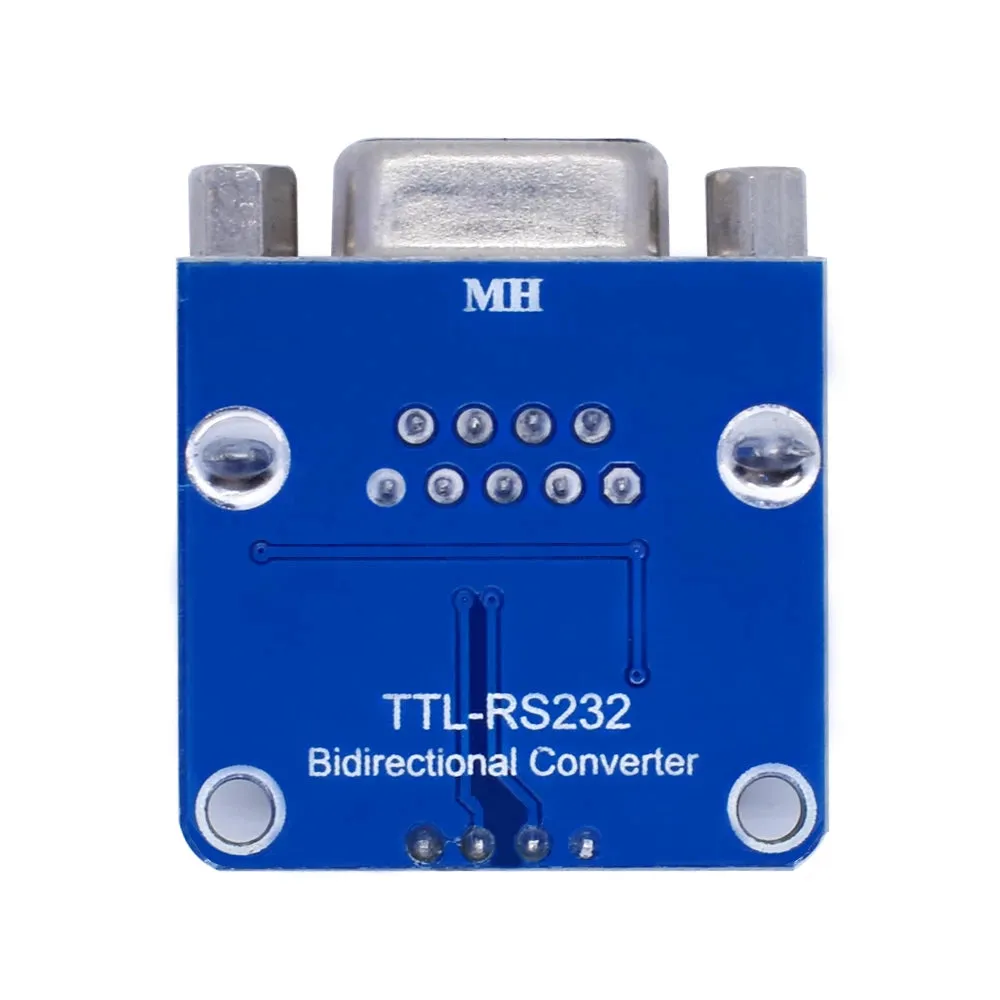

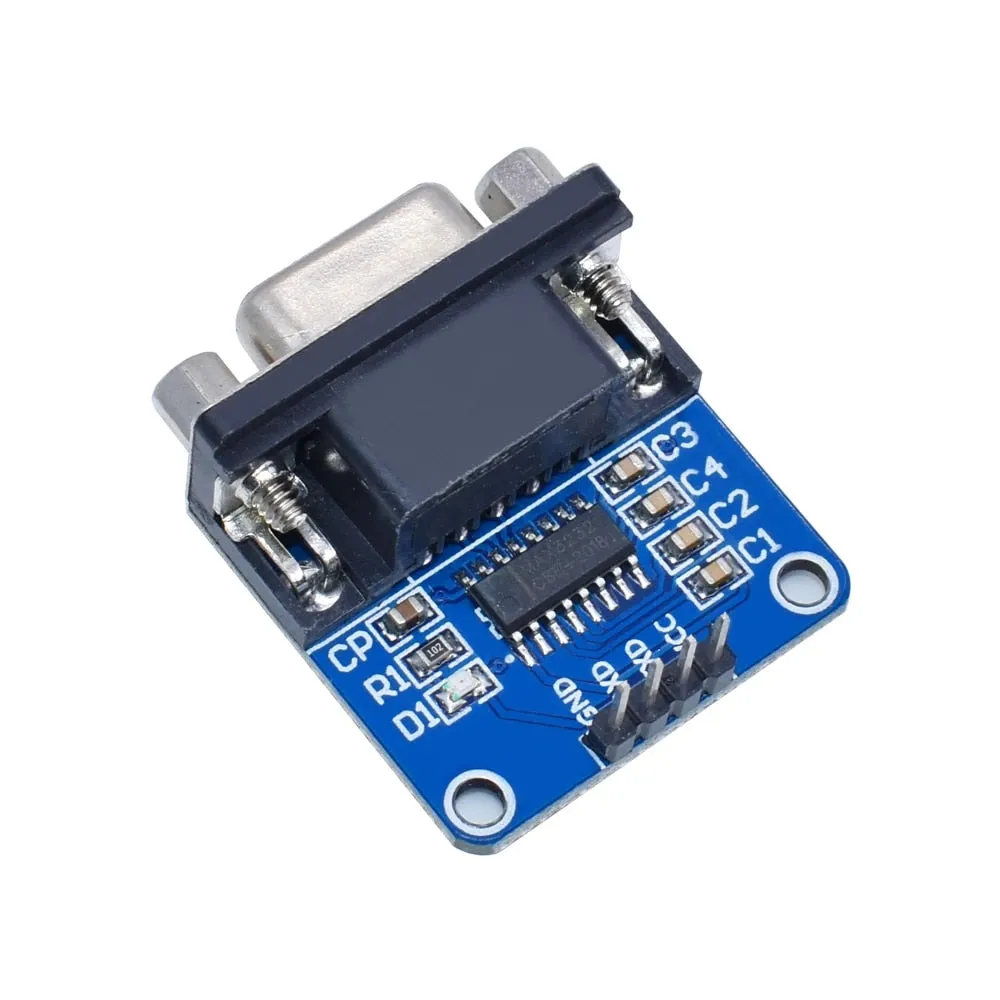

RS 232 to TTL Serial Interface Module

This RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion.

Interfacing :

• Vcc - 3.3v - 5.5V

• Gnd - Gnd

• Tx - Transmit Pin

• Rx - Receive Pin

MAX3232 RS232 Serial Port To TTL Converter Module DB9 Connector 5V RS232 to TTL Female Serial TTL serial modules / Brush board. This module can be used to the serial port of the microcontroller module expand DVD, router, hard drive and other equipment to upgrade.

Features and Applications:

1. It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, hard disk repair set-top box upgrade.
2.  It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N -2EC MCU
3. Pre-assembled compact size board
4. Suitable for use with most microcontrollers
5. Operates up to 250 kbit/s

Package Includes :

1 x MAX3232 RS232 to TTL Serial Interface Module
