Specs

Model:

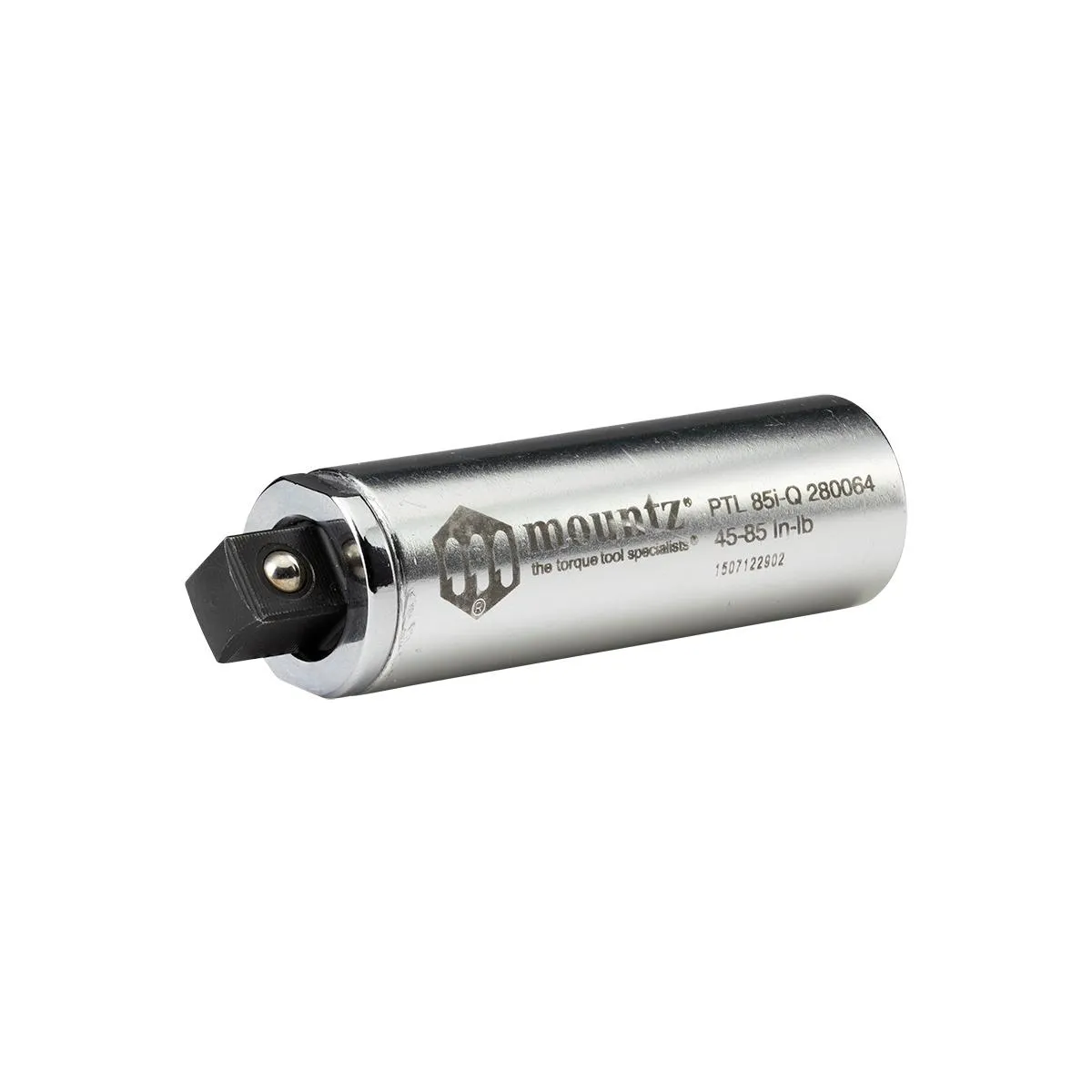

PTL 85i-Q

Item #:

280064

American:

45 - 85 lbf.in

S.I.:

508.5 - 960.5 cN.m

Metric:

51.7 - 97.7 kgf.cm

Input Drive:

3/8 F/Sq

Output Drive:

3/8 M/Sq

Tool Weight:

3.3 oz.

Tool Length:

Designed to be used in-line to limit torque for hand (static) applications. Can also be used as an overload protection device on most applications where measuring a static overload is needed. Provides accurate process control as the unit prevents a fastener or bolt from being under and over tightened.

Repeatability within /- 6% of pre-set torque value.

Designed to be used in-line to limit torque for hand (static) applications. For low torque applications.
Can also be used as an overload protection device on most applications where measuring a static overload is needed.
The rotary clutch mechanism slips free when the pre-set torque value is reached, eliminating overtightening. The mechanism then automatically resets.
Pre-set using a torque analyzer.
Bi-directional operation and are calibrated in either the CW or CCW direction.
Lightweight and easy-to-use.

Do not use PTL with a power tool.
