Product Details
＋
Specs
Model:
PTL4.5i
Item #:
280060
American:
1 - 4.5 lbf.in
S.I.:
11.3 - 50.8 cN.m
Metric:
1.2 - 5.2 kgf.cm
Input Drive:
3/8 F/Sq
Output Drive:
1/4 F/Hex
Tool Weight:
3.3 oz.
Tool Length:
3

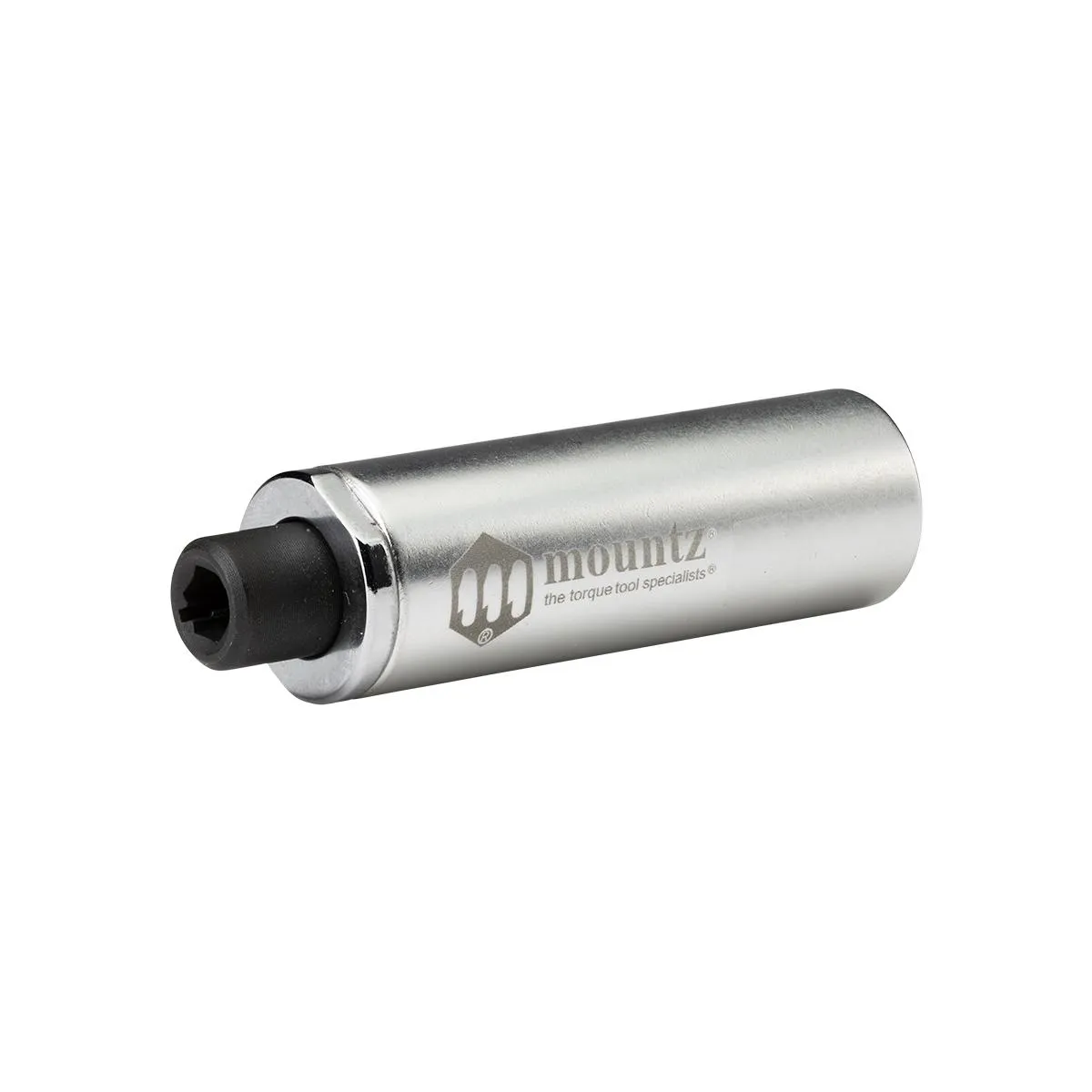

Designed to be used in-line to limit torque for hand (static) applications. Can also be used as an overload protection device on most applications where measuring a static overload is needed. Provides accurate process control as the unit prevents a fastener or bolt from being under and over tightened.
Repeatability within /- 6% of pre-set torque value.
- Designed to be used in-line to limit torque for hand (static) applications. For low torque applications.
- Can also be used as an overload protection device on most applications where measuring a static overload is needed.
- The rotary clutch mechanism slips free when the pre-set torque value is reached, eliminating overtightening. The mechanism then automatically resets.
- Pre-set using a torque analyzer.
- Bi-directional operation and are calibrated in either the CW or CCW direction.
- Lightweight and easy-to-use.
Do not use PTL with a power tool.
