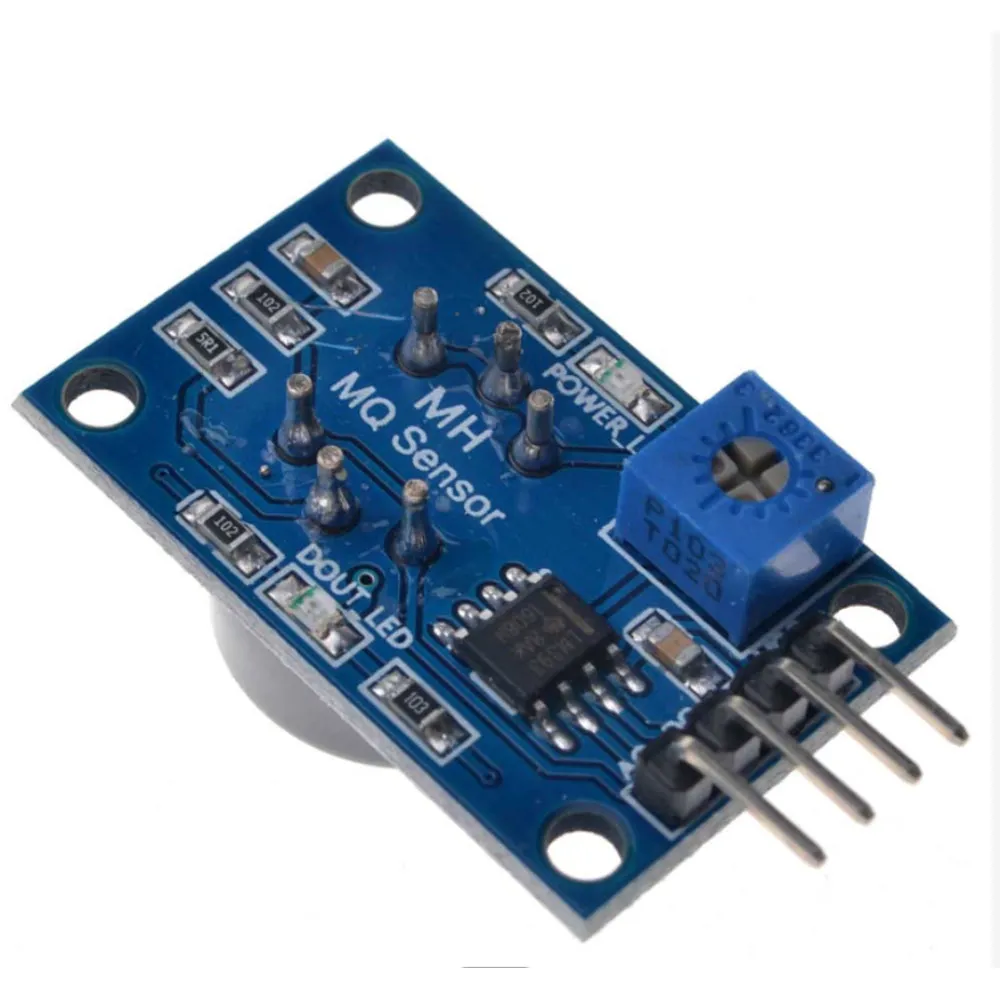

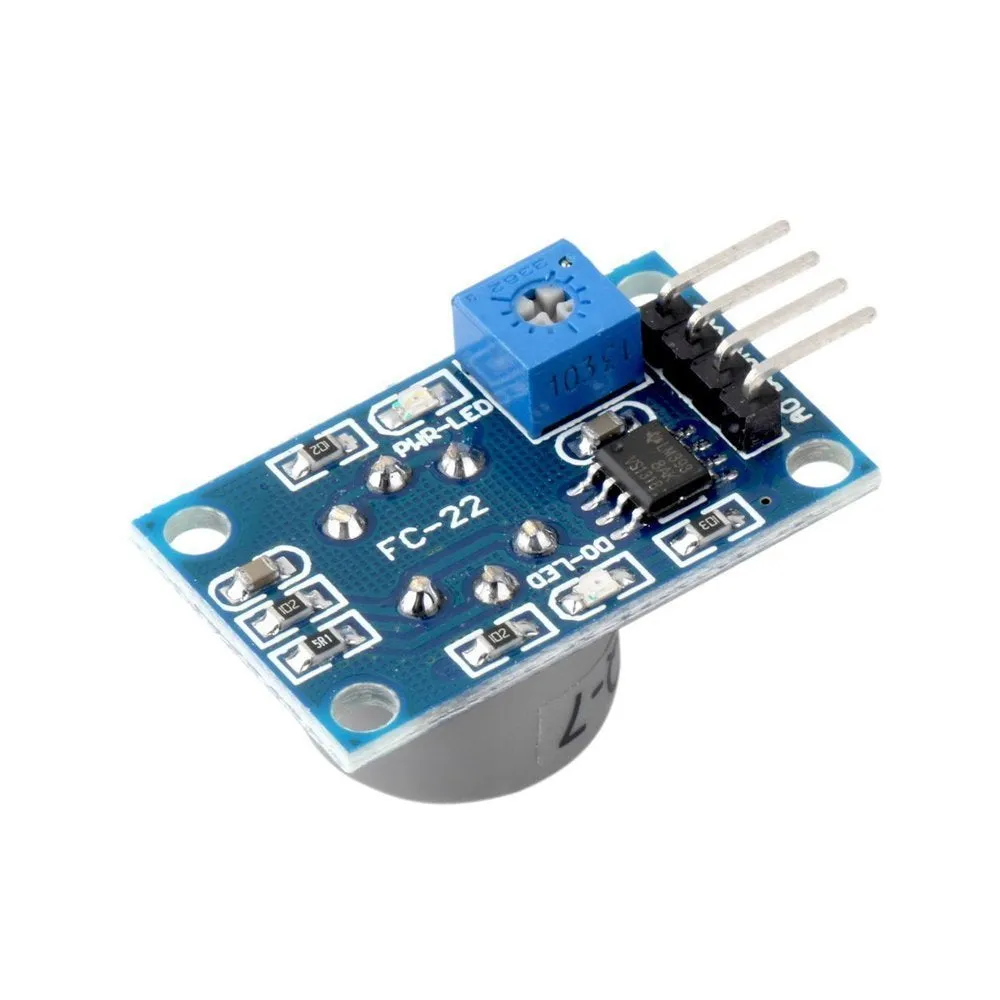

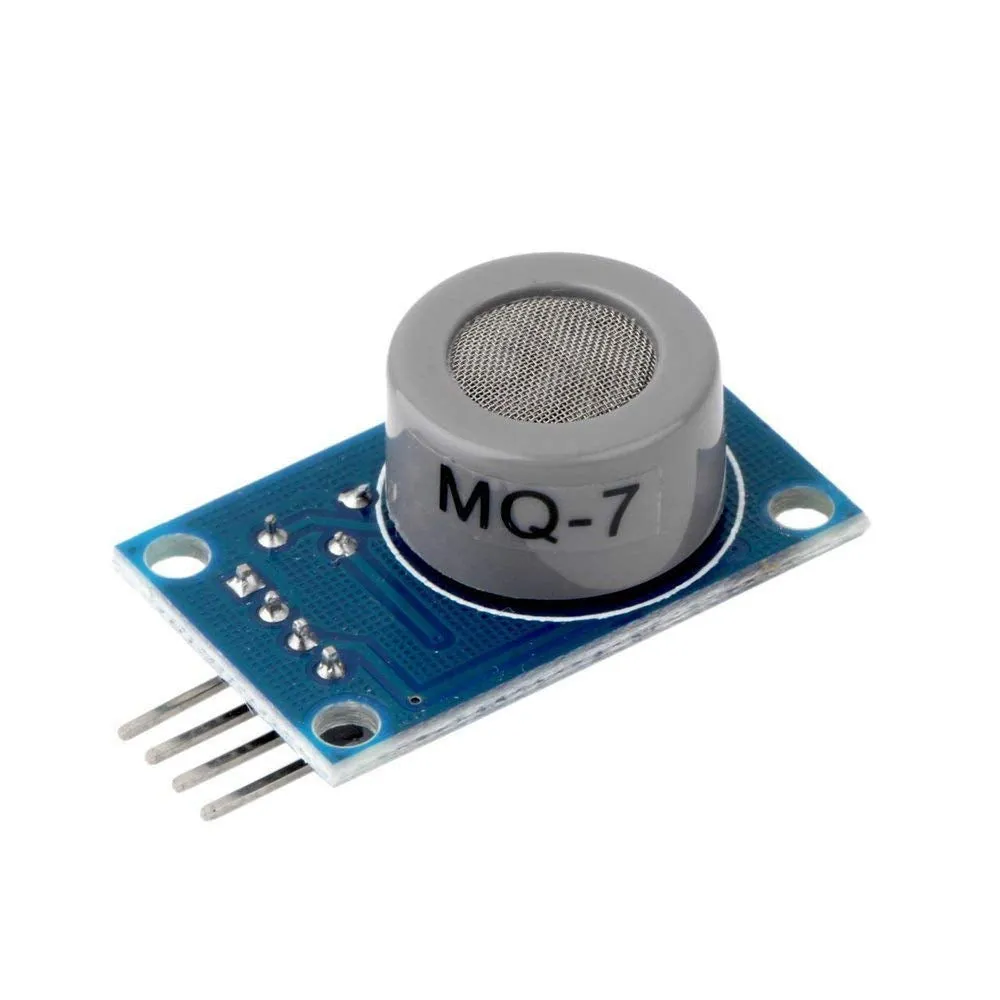

MQ-7 Carbon Monoxide Gas Sensor Module

The MQ-7 CO Carbon Monoxide Coal Gas Sensor Module detects the concentrations of CO in the air and outputs its reading as an analog voltage. The sensor can measure concentrations of 10 to 10,000 ppm.

The sensor can operate at temperatures from -10 to 50°C and consumes less than 150 mA at 5 V.

This module provides both digital and analog outputs. The threshold level for digital output can be easily adjusted using the preset on the board. The MQ-7 sensor module can be easily interfaced with Micro-controllers, Arduino and etc.

Technical Details

  • Type: Gas Sensor
  • Voltage: 5V
  • Sensitivity: ≥ 3%
  • Return time: ≤ 30 sec
  • Heater Resistance: ± 31Ω
  • Heater Current: ≤ 180mA
  • Heater Voltage: 5.0V ± 2V / 1.5 ± 1V
  • Heater Power: approx. 350mW
  • Temperature: -20°C ~ 50°C
  • Humidity: ≤ 95% RH
  • Oxygen Content: 21%
  • Dimensions: 35x20x11 mm
  • Weight: 20g

Standard Test Conditions

  • Temperature: 20°C ± 2°C
  • Humidity: 65% ± 5% RH
  • Standard Test Circuit: Vc: 5.0V ± 0.1V
  • Vh (high): 5.0V ± 0.1V
  • Vh (low): 1.5V ± 0.1V

Features

  • Product Type: Semiconductor gas sensor
  • Standard package: Metal Oxide packaging
  • High sensitivity, Fast response, and Long recovery life
  • Low power consumption
  • Simple drive circuit
  • Detection gas: Methane, natural gas, liquefied petroleum gas, hydrogen
  • Detectable concentration:
  • 500-10000ppm for LPG and propane
  • 1000-20000ppm for methane
  • 500-10000ppm

Applications :

  • Home Safety: Detects carbon monoxide (CO) in homes to prevent poisoning.
  • Industrial Safety: Monitors CO levels in factories and workplaces with combustion processes.
  • Automotive Applications: Used in vehicle exhaust systems to monitor CO levels.
  • Breathing Safety Systems: Monitors CO levels in closed environments like submarines or space stations.
  • Portable Detectors: Handheld devices for field CO detection and safety checks.

Integration with Arduino

Sample Code

Physical Attributes: MQ-7 Sensor Module

  • Length * Width * Height (mm): 32 x 20 x 15
  • Weight (gm): 5

Package Includes

  • 1 x MQ-7 Carbon Monoxide Gas Sensor Module
