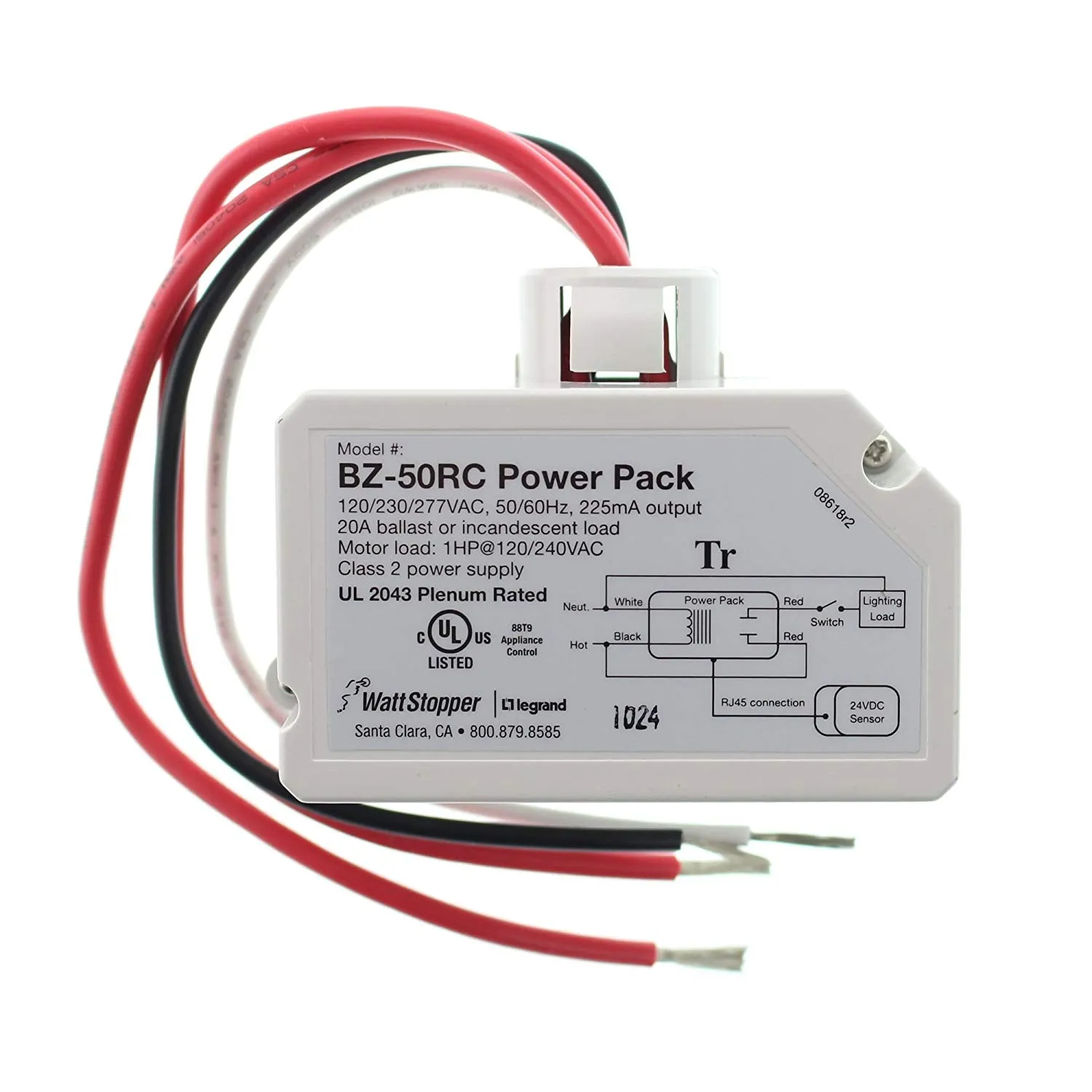

The BZ-50RC Universal Voltage Power Pack provides 24 VDC operating voltage to Wattstopper’s low-voltage occupancy sensors equipped with RJ45 jacks. This device is RoHS-conforming.

Features

• Input Voltage: 120/277VAC, 50/60Hz
• Output: 24 VDC, RJ45 connection
• Load Requirements:
• Ballast, Incandescent: 20amp, 120/277VAC
• Motor: 1HP, 120/240VAC
• High-efficiency switching power supply
• RJ45 connection
• Zero crossing for reliability and increased product life
• Overcurrent protection (low-voltage)
• Hold ON and Hold OFF inputs
• Plenum rated
